使用用途与详细资料/Brief Introduction：

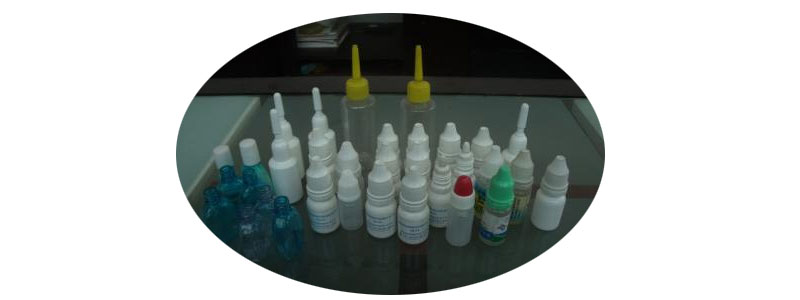

该机采在2-30ML不同的质地的椭圆形扁形橡胶或的塑料瓶的眼药液装罐、网上烟油等小标准容量装罐.该机由高导致精度凸轮机构轴度数构造供应数据度数等分盘精准准确定位上塞上盖;变快度凸轮机构轴传送齿轮供应数据旋盖头的升降系统;恒最大扭矩旋盖;肠蠕动泵压力容器检验装罐;触控屏抑制.无瓶不装罐,没加内塞,外盖.具精准准确定位正确,传送齿轮保持稳定,保護饮料瓶盖,压力容器检验准.基本操作轻松等特点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

性能/Characteristic：

◆微计算机控制、装量准确度、操作的简单方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆设备主机轉速可实现有级直流变频空调控速。the mainframe running speed is stepless frequency conversion.◆生育量自行一定量控住。the product quantity can be controlled. ◆多种类故障问题显示信息基本功能(如低空气压力。无罐装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆重新停电功能表，对指定钢轨出显间断无包装、无内塞前提可重新停电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

方法参数设置/Main Technical Parameters：

选用规格型号Filling Volume	2-30ml
产出本事Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装线控制精度Filling Precision	≤±1%
电源模块 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
一键上塞率Stoppering rate	≥99%
安全阀Air Supply	1.3 m3/h    0.4-0.8Mpa
热效率 Power	2.0 kw
机毛重Weight	550 kg
形态面积Dimension	1800*1000*1500mm
